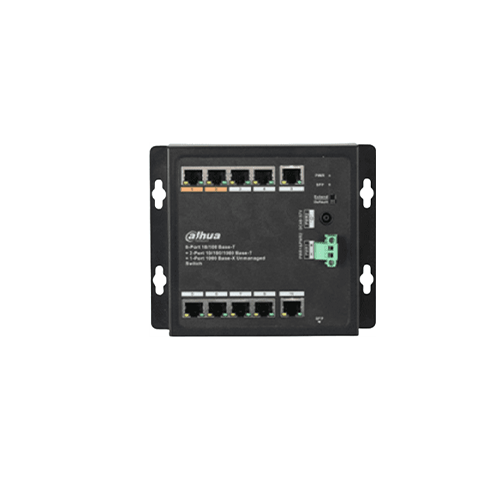

DH-PFS3111-8ET-96-F

11-Port Switch with 8-Port PoE (V2)

• Flat wall-mount design, Layer 2 unmanaged switch
• Complies with IEEE 802.3, IEEE 802.3u, and IEEE 802.3X standards
• Network interfaces: 1 × 10/100/1000 Base-X (SFP optical port), 1 × 10/100/1000 Base-T (RJ45), 8 × 10/100 Base-T (PoE)
• Ports 1–2 support 60W Hi-PoE (orange ports)
• Supports PoE Watchdog
• PoE Extend: Transmission distance up to 250m at 10Mbps (Ports 1–4)
• PoE power: Ports 1–2 ≤60W, Ports 3–8 ≤30W, Total ≤96W
• PoE standards: IEEE 802.3af / IEEE 802.3at / Hi-PoE
• Switching capacity: 13.6Gbps, packet forwarding rate: 5.65 Mpps
• MAC address table: 8K, Power supply: DC48V–57V
