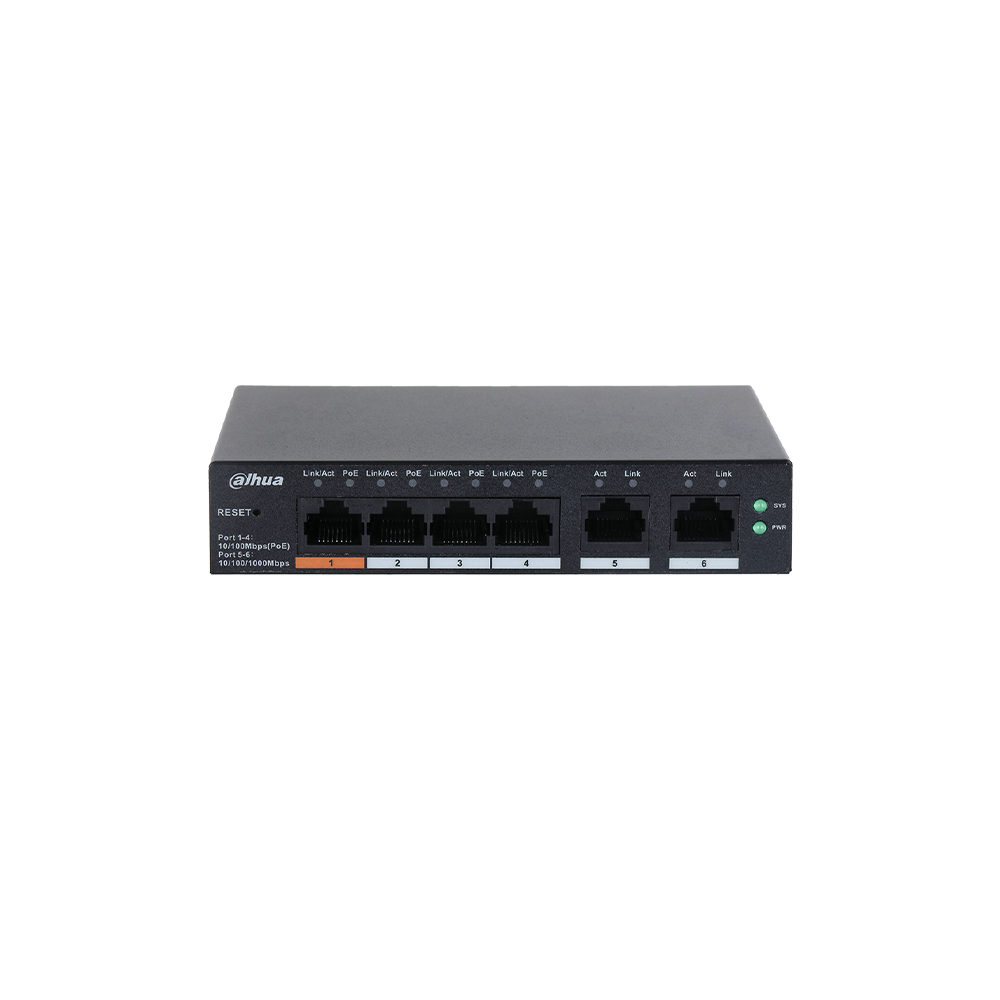

DH-CS4006-4ET2ET-60

6-Port Cloud PoE Switch with 4 PoE Ports and Hi-PoE

• Complies with IEEE 802.3af, IEEE 802.3at, and Hi-PoE power supply standards
• Supports Intelligent PoE, PoE Watchdog, LLDP, VLAN, Loop Detection, etc.
• PoE Extend: Signal and power transmission distance up to 250m
• Network interfaces: 2 × RJ-45 10/100/1000 Mbps (uplink), 4 × RJ-45 10/100 Mbps (PoE)
• PoE power: ≤30W per port, ≤60W total
• 1 × 60W Hi-PoE high-power port for Speed Dome cameras
• Switching capacity: 0.89Gbps
• Packet forwarding rate: 1.2 Mpps
• Power supply: 53VDC, 1.226A; 4KV surge protection
