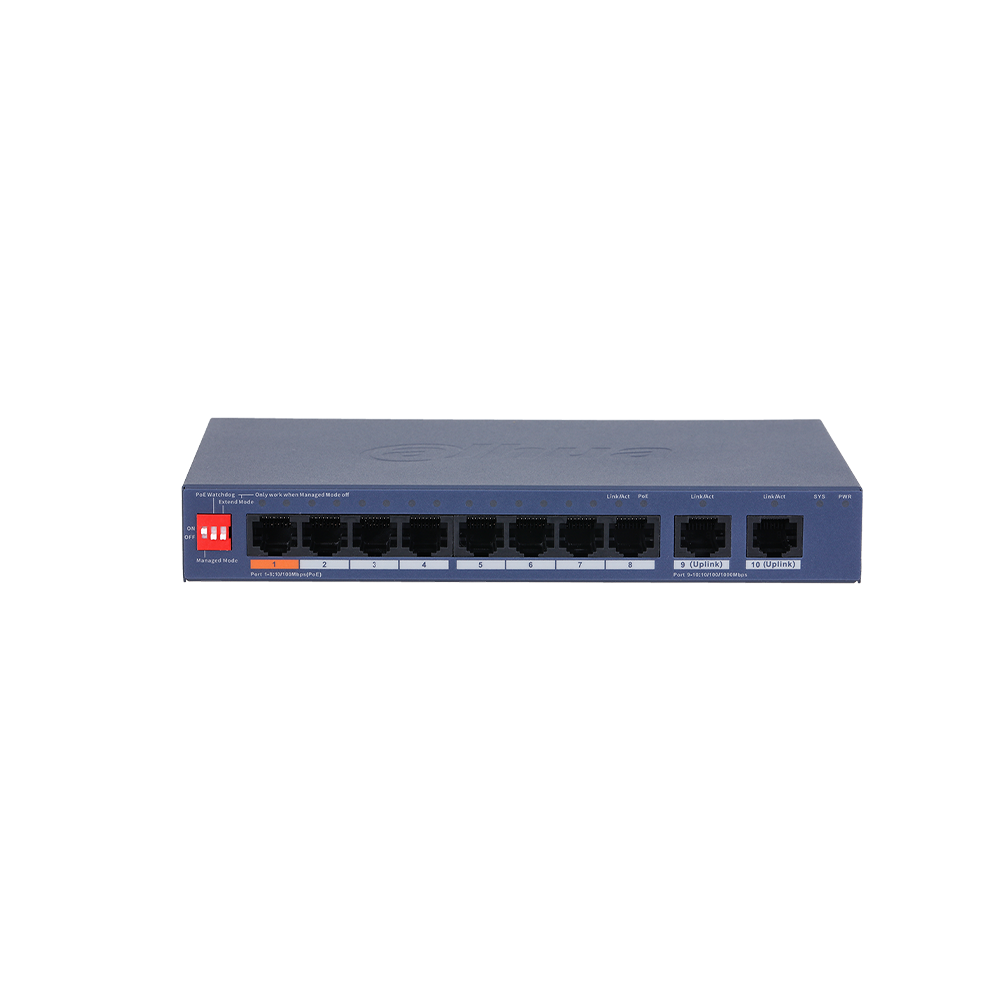

DH-CS4010-8ET2GT-60

10-Port Cloud PoE Switch with 8 PoE Ports and Hi-PoE

• Complies with IEEE 802.3af, IEEE 802.3at, and Hi-PoE power supply standards
• Supports Intelligent PoE, PoE Watchdog, LLDP, VLAN, Loop Detection, etc.
• PoE Extend: Signal and power transmission distance up to 250m
• Network interfaces: 2 × RJ-45 10/100/1000 Mbps (uplink), 8 × RJ-45 10/100 Mbps (PoE)
• PoE power: ≤30W per port, ≤60W total
• 1 × 60W Hi-PoE high-power port for Speed Dome cameras
• Switching capacity: 5.6Gbps
• Packet forwarding rate: 4.17 Mpps
• Power supply: 53VDC, 1.226A; 6KV surge protection
