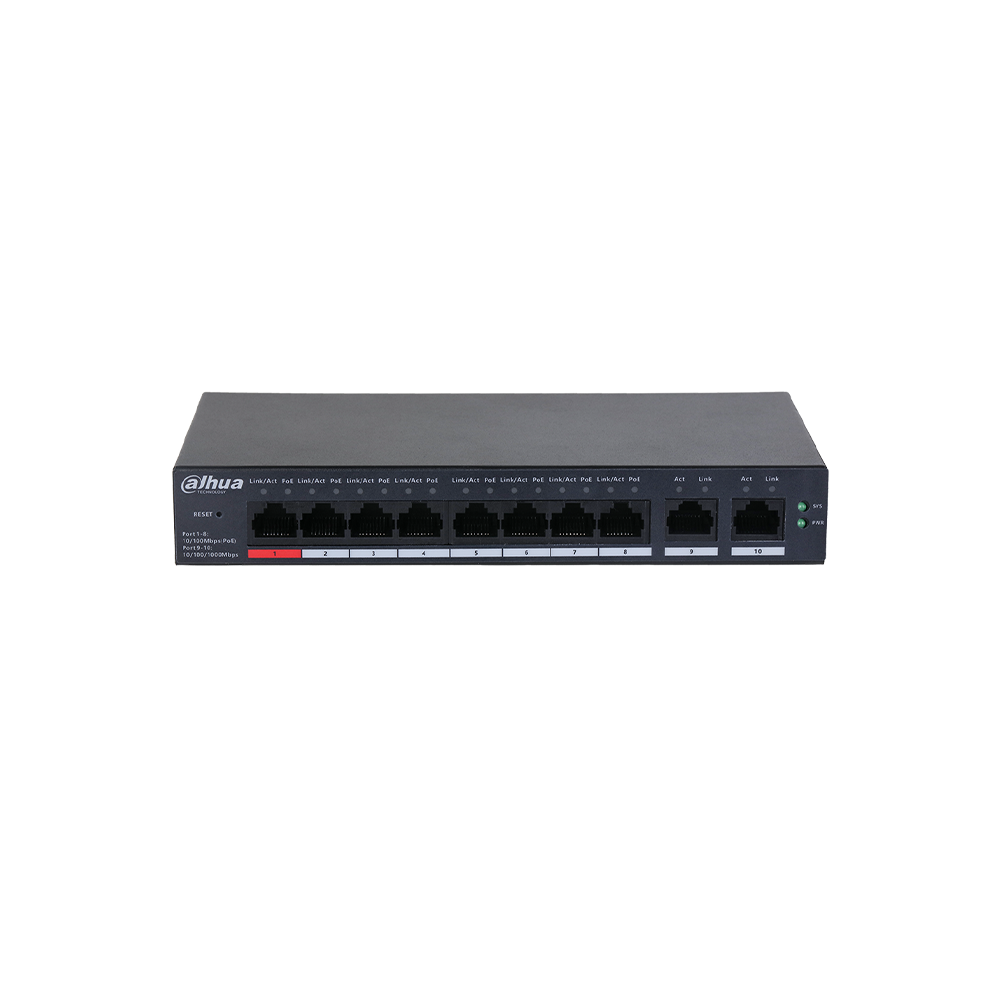

DH-CS4010-8ET-110

10-Port Cloud PoE Switch with 8 PoE Ports and 90W Hi-PoE

• Complies with IEEE 802.3af, IEEE 802.3at, and Hi-PoE power supply standards
• Supports Intelligent PoE, PoE Watchdog, LLDP, VLAN, Loop Detection, etc.
• PoE Extend: Signal and power transmission distance up to 250m, with per-port Extend support
• Network interfaces: 2 × 10/100/1000 Mbps RJ45 (uplink), 8 × 10/100 Mbps RJ45 (PoE)
• PoE power: ≤30W per port, ≤110W total
• 1 × 90W Hi-PoE BT high-power port for Speed Dome cameras
• Perpetual PoE: Continuously supplies PoE power to cameras even when the switch is rebooted
• Switching capacity: 5.6Gbps
• Packet forwarding rate: 4.17 Mpps
• Power supply: 54VDC, 2.22A; 4KV surge protection
